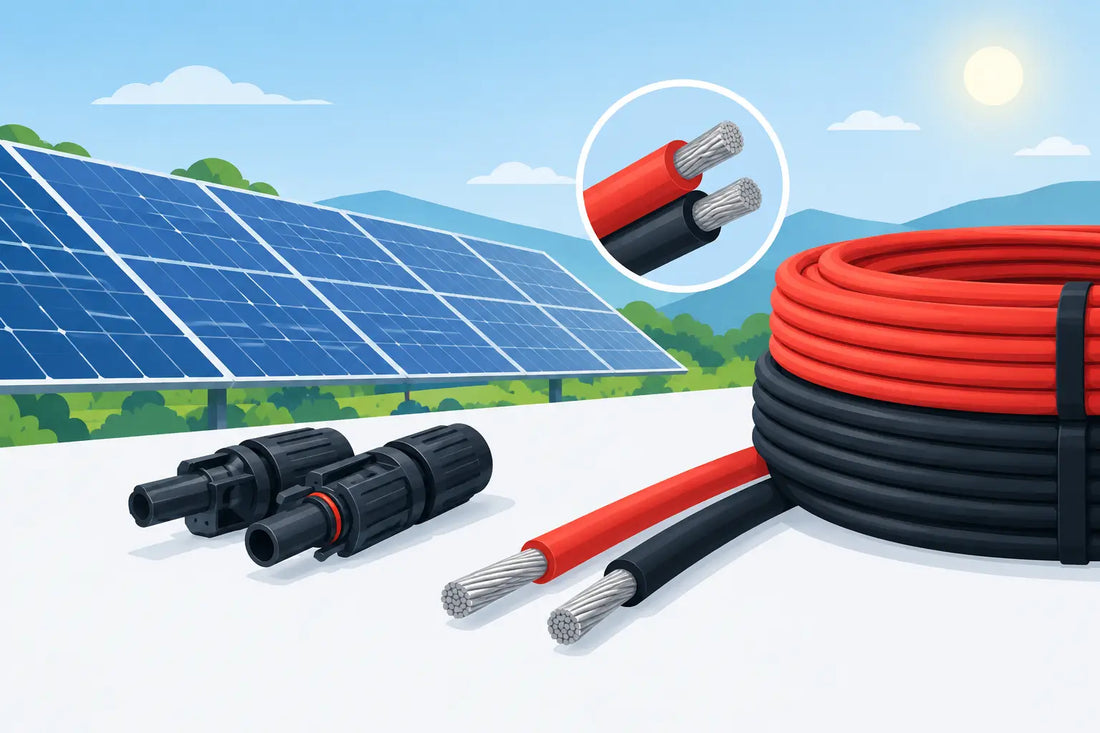

Selecting IEC62930 Solar DC Cable for PV Work
Share
A DC cable fault is rarely an isolated cable problem. It can mean a return visit, fault-finding time, connector replacement and an avoidable handover delay. Selecting IEC62930 solar DC cable should therefore start with the actual string design, equipment ratings and cable route - not simply the lowest price per metre or a familiar conductor size.
For Australian installation crews, the right cable needs to suit the PV array electrically and survive years of heat, UV exposure, movement and weather. It also needs to arrive in the right length and carton quantity to keep the job moving. The practical decision is a balance of compliance, voltage drop, installation conditions and procurement cost.
What IEC 62930 tells you about solar cable
IEC 62930 is a standard for electric cables used in photovoltaic systems. A cable carrying this designation is intended for PV DC applications, where conductors can be exposed to elevated temperatures, direct sunlight and demanding outdoor conditions over a long service life.
That distinction matters. General-purpose building wire may look suitable by conductor size alone, but a solar array cable needs insulation and sheath properties appropriate to its location and duty. PV cable is commonly specified with tinned copper conductors and cross-linked insulation materials to support flexibility, weather resistance and thermal performance.
The cable standard is only one part of a compliant installation. Array design, isolation, overcurrent protection, cable support, segregation, labelling, earthing and installation practices must also meet the applicable Australian standards, manufacturer instructions and project requirements. Do not treat an IEC 62930 marking as a substitute for checking the complete system design.
Selecting IEC62930 solar DC cable by electrical rating
Start with the maximum system voltage. This is not just the inverter's nominal voltage. Check the maximum open-circuit voltage of the string at the lowest expected module temperature, then allow for the design requirements of the installation. The cable voltage rating must suit the system and provide the required margin under the applicable rules.
Current capacity comes next. Size the conductor for the expected string current and any parallel-string arrangement, with appropriate allowance for design factors, ambient temperature and installation method. A single string on a residential roof has different loading from grouped homerun cables on a commercial array or multiple strings entering a combiner.
Voltage drop deserves the same attention. DC runs from an array to an inverter can become long quickly on commercial roofs, sheds and ground-mount work. A cable that is adequate for current may still waste output if the run is extended and the conductor is undersized. Calculate the full circuit length - out and return - using the planned route, not a straight-line measurement from the array to the inverter location.
Moving from 4 mm² to 6 mm² cable may add material cost, but it can reduce voltage drop and avoid a more expensive correction later. Conversely, oversizing every short rooftop string is not automatically economical. The right selection depends on current, run length, layout and the project specification.
Check conductor construction and flexibility
Fine-stranded, tinned copper PV cable is common because it is easier to pull, dress and terminate than a stiff conductor, while tinning supports corrosion resistance in outdoor environments. Verify the conductor size stated on the product specification rather than relying on the outside diameter of the cable.
Flexibility is a jobsite issue, not a cosmetic preference. Cable needs to route cleanly beneath modules, around rail systems and through approved entries without putting stress on terminations. It must still be supported correctly. Do not use flexibility as a reason to leave long unsupported loops or allow cable to rest on roofing where water, heat and abrasion can create problems.
Match cable to the route, not just the array
The cable route usually determines whether an otherwise suitable product is the right choice. Before ordering, map where the cable will run: under modules, across a roof, through conduit, down a wall, underground in a suitable system, or within equipment enclosures. Each section can introduce different temperature, mechanical protection and support requirements.
On roofs, UV exposure and heat are obvious factors, but abrasion is just as relevant. Cable can rub against rail edges, sheet-metal penetrations, sharp flashings or poorly positioned clips. Use cable clips and supports that are designed for the rail or module frame and that will not damage the insulation over time. Keep conductors clear of roof surfaces and away from areas where water can pool.
Where cable enters conduit, assess fill, bend radius and heat. Several DC circuits grouped in a run can require derating, particularly in hot roof spaces or exposed conduit. Pulling cable too hard through a crowded pathway can damage the sheath before commissioning. If the route has changed on site, revisit the cable calculation rather than assuming the original allowance still applies.
For rooftop work near coastal areas, industrial sites or locations with high UV and temperature exposure, material quality matters even more. Cheap cable can shift risk into the future, when access is harder and warranty costs are higher.
Confirm connector and termination compatibility
Cable and connector selection must be treated as one decision. The conductor cross-section needs to fall within the connector manufacturer's approved range, and the insulation diameter must suit the connector seal and gland arrangement. A cable can be IEC 62930 rated and still be unsuitable for a particular connector if its outside diameter or conductor construction does not match the connector specification.
This is especially relevant when using genuine MC4 or MC4-EVO 2 connectors. Follow the connector manufacturer's stripping length, crimp die requirement, conductor range and assembly procedure. A correct-looking plug assembled with an incorrect die, poor crimp or incompatible cable is a field failure waiting to happen.
Avoid mixing connector brands or connection systems unless the manufacturers explicitly permit that arrangement. Physical mating does not prove electrical compatibility or long-term sealing performance. For procurement teams, keeping approved cable and genuine connector lines together on the purchase order reduces the chance of crews receiving a combination that should not be used.
Read the markings before cable goes to site
The reel label and cable print should provide useful confirmation before the material is issued. Check the manufacturer, cable designation, conductor size, voltage rating, applicable standard marking, batch or traceability details and reel length. If a product listing does not clearly state these basics, it is difficult to verify that it matches the design requirement.
Also inspect cable on delivery. Look for crushed reels, cuts, flattened sections, contamination and printing that is missing or inconsistent. This is a quick check, but it is far cheaper to quarantine questionable stock before it is pulled across a roof than after strings have been terminated.
For larger jobs, record reel batch details against the project. That level of traceability can save time if a commissioning issue, warranty query or supply investigation occurs later.
Order quantities around the job, not the metre rate
Cable is often purchased as an afterthought, then crews run short because allowances for vertical drops, routing changes, service loops and wastage were too tight. Measure each circuit route, add a realistic installation allowance, then consolidate the total by cable size and colour. Confirm whether black and red conductors are required by the design and site convention, rather than creating unnecessary joins to use available stock.
Full reels and carton quantities can improve the per-metre cost for repeat installers, but only where the stock will turn over. A contractor completing regular residential work may sensibly hold common sizes. A project-specific commercial run may be better ordered to the take-off, particularly when several cable sizes are involved.
Freight also affects the real cable cost. Long, heavy reels can change the economics of an order more than a small difference in unit price. Combining cable with connectors, clips, conduit fittings, labels and roof-entry components can reduce purchasing friction and help crews receive the materials needed to finish the job in one delivery. For recurring trade orders over $1,000, Solar Products Supply's store-credit arrangement can also be factored into procurement value.
A practical pre-order check
Before releasing a cable order, confirm these points with the design and site team:
- maximum string voltage and cable voltage rating;
- design current, grouping conditions and conductor size;
- full circuit length and calculated voltage drop;
- route conditions, including UV, heat, conduit and mechanical protection;
- connector conductor range, insulation diameter and approved crimp method;
- reel lengths, colour requirements, delivery timing and site quantity.
Treat solar DC cable as a designed component of the array, not a generic consumable. The best buying decision is the one that reaches site in the right size, matches the approved connector system, installs cleanly and stays out of the defects queue long after the crew has left.
